F3ET2

  • F3ET2 Light Curtain in robust aluminium housing Datalehti

    • Thank you for downloading the F3ET2 Light Curtain in robust aluminium housing Datalehti

    Download again

    Did you know that 4 out of 5 distributors buy this product in a bundle?

    There are many variations of passages of Lorem Ipsum available, but the majority have suffered alteration in some form, by injected humour, or randomised words which don't look even slightly believable.

    Read more
Features

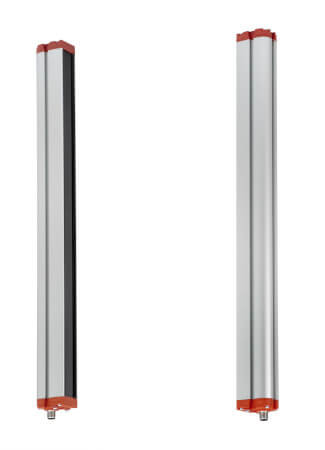

Lightcurtain in robust aluminium housing

The F3ET2 lightcurtains provide a reliable area monitoring in a robust housing. The optical synchronisation between emitter and receiver allow a fast and simple installation without special requirements.

  • Optical synchronisation for reliable operation without additional wiring
  • Robust aluminium housing
  • NPN/PNP and light on/dark on selectable
Specifications & ordering info

Ordering information

Sensor type

Detection area (mm)

Pitch

Sensing distance

Channels

Connection method

Output

Order code1









Through-beam



150

5 mm

3 m

30

-

5 pin

-

-

PNP/NPN

F3ET2-005-150

18 mm

15 m

8

-

-

-

F3ET2-018-150

300

5 mm

3 m

60

-

-

-

F3ET2-005-300

18 mm

15 m

16

-

-

-

F3ET2-018-300

450

5 mm

3 m

90

-

-

-

F3ET2-005-450

18 mm

15 m

24

-

-

-

F3ET2-018-450

600

5 mm

3 m

120

-

-

-

F3ET2-005-600

18 mm

15 m

32

-

-

-

F3ET2-018-600

900

5 mm

3 m

180

-

-

-

F3ET2-005-900

18 mm

15 m

48

-

-

-

F3ET2-018-900

1200

5 mm

3 m

240

-

-

-

F3ET2-005-1200

18 mm

15 m

64

-

-

-

F3ET2-018-1200

1500

5 mm

3 m

300

-

-

-

F3ET2-005-1500

18 mm

15 m

80

-

-

-

F3ET2-018-1500

1800

5 mm

3 m

360

-

-

-

F3ET2-005-1800

18 mm

15 m

96

-

-

-

F3ET2-018-1800

2100

18 mm

15 m

112

-

-

-

F3ET2-018-2100

Connector cables

Type

Features

Material

Order code

Nut

Cable

Straight

Angled

M12

5 wires

CuZn

PVC 2 m

XS2F-M12PVC5S2M-EU

XS2F-M12PVC5A2M-EU

PUR 2 m

XS2F-M12PUR5S2M-EU

XS2F-M12PUR5A2M-EU

PVC 5 m

XS2F-M12PVC5S5M-EU

XS2F-M12PVC5A5M-EU

PUR 5 m

XS2F-M12PUR5S5M-EU

XS2F-M12PUR5A5M-EU

Specifications

Item

Through-beam

F3ET2-005_

F3ET2-018_

Sensing distance

0 to 3 m

0 to 15 m

Vertical detection area

0 to MaxM mm; MaxM: 150, 300, 450, 600, 900, 1200, 1500, 18002

0 to MaxM mm; MaxM: 150, 300, 450, 600, 900, 1200, 1500, 1800, 2100

Minimum detectable object size

10 mm

30 mm

Pitch

5 mm

18 mm

Response time

4 ms + 80 µs × number of beams

Light source (wave length)

Infrared LED (880 nm)

Power supply voltage

24 VDC±20%

Operating temperature

-10 to 55°C

Degree of protection

IEC 60529 IP65

Material

Case

Aluminum

1. Light-ON/Dark-ON selectable

2. Models with different detection ranges are available in 150 mm intervals. Please contact your OMRON representative.

1. Light-ON/Dark-ON selectable

2. Models with different detection ranges are available in 150 mm intervals. Please contact your OMRON representative.
