NB Faceplate for Energy Meter: Monitor Power consumption directly in your HMI
Energy Monitoring

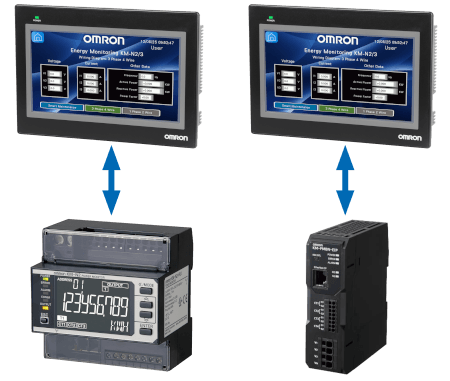

The NB screen for the KM-N2/3/PM energy monitoring system includes two sub-screens: one for a 3-phase 4-wire setup and another for a 1-phase 2-wire configuration.
These screens display key electrical parameters such as voltage, current, frequency, active and reactive power, and power factor. Measurements are captured using a split-type Current Transformer (CT).
Visit the NB Faceplate page to download the projectRelated Products
